TriggerTech



The design of our new Duty Line was driven by feedback from military and law enforcement operators. They wanted our patented Zero Creep Technology and proven stainless steel internals, but with a more tactile feel. To achieve this, we more than doubled the pull weight and length of the first stage. And after the zero creep break we engineered a much more forceful reset. The result? A totally different feel that offers more certainty with every shot. The Duty Line is TriggerTechs interpretation of what Mil-Spec should be.
INTENDED USE

Close quarter engagement,  harsh environments operations,  law enforcement, military, 3 Gun,  varmint hunting.
TRIGGER CONTROL DETAILS

    Trigger Lever Type: Straight Flat
    Trigger Action: Single-Stage
    Zero Creep™: Yes
    TKR Technology: Yes
    CLKR Technology: Yes
    FLTWR Technology: Yes
    Pull Weight: Fixed at 3.5lbs
    Creep: 0.000"
    Overtravel: 0.060"
    Reset: 0.070"
    Reset Feel: Tactile mid force
    Hammer Strike Force: Full
    Pin Size: Standard Mil-Spec Pin 0.154" (trigger pins not included)
    Satisfaction Guarantee : 30 days
    Warranty: Product lifetime
    Weapon Platforms: AR-15


MATERIAL DETAILS

Housing: EZAC Diecast

Key Components: 440C Stainless Steel

PVD Black – PVD stands for Physical Vapour Deposition. It is a hard and durable coating that is applied to external stainless components to give them a clean black color.


FULL DESCRIPTION

The AR Duty line is the latest in TriggerTech triggers that offers robust reliability without compromising performance. Inspired by active MIL / LE Operators these triggers offer a longer take up (on two-stages) and a more forceful reset.

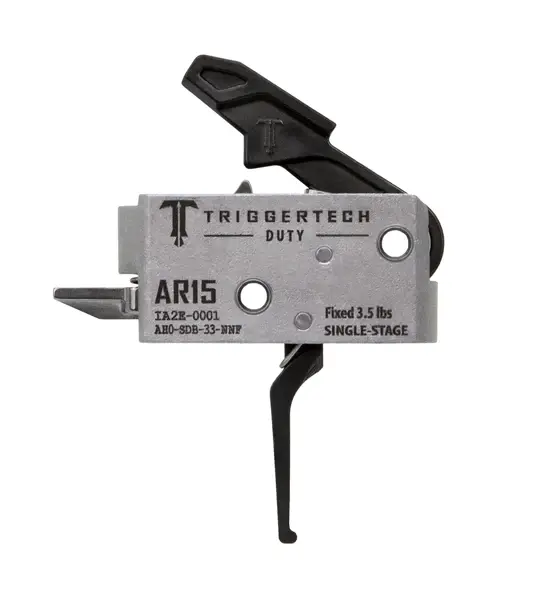

TriggerTech AR-15 Duty, Single-Stage, Straight Flat, Trigger - $99.99 add to cart

'-15':3,16 '33':23 '885768003520':18 '99.99':11 'add':12 'ah0':21 'ah0-sdb':20 'ar':2,15 'cart':14 'duti':4,17 'flat':9 'nnf':24 'sdb':22 'singl':6 'single-stag':5 'stage':7 'straight':8 'trigger':10 'triggertech':1,19



The TriggerTech AR15 Single-Stage drop-in AR trigger provides a true zero-creep break, extremely short overtravel, a sub 0.030” tactical reset and offers outstanding reliability, even in the harshest environments. Utilizing CLKR Technology™, the pull weight is quickly and confidently be adjusted in 2oz increments from a set screw with the trigger installed. Due to there being truly zero creep, most shooters report the pull weights feeling ~0.5lbs lighter than a friction based trigger of the same measured pull weight. Changing the triggers pull weight does not affect hammer force so you get dependable primer strikes at every weight. Zero Creep Technology™, along with hardened 440C stainless steel internal components ensure corrosion resistance and an extended service life. As Zero Creep Technology™ does not rely on coating, polishing or lubricating the key engagement surfaces, trigger pulls will be more consistent from shot to shot and after thousands of shots than you ever thought possible. This is the independece model with a 3.5LB Fixed Weight Trigger.

All pull weights and measurements are approximate.

The installation guide is directed to experienced professional gunsmiths who understand the workings of their AR rifle and know how to fully detail strip the lower receiver. If you do not have these skills, we strongly suggest you retain the services of a competent professional gunsmith to install your trigger, and perform all important safety checks.

Developing the Single-Stage AR

To develop a TriggerTech Single-Stage AR15 trigger we started with our proven Two-Stage AR platform that has been in the field since 2016 and combined it with a serious amount of ingenuity from our engineering department. While it was initially viewed as not possible, our team of engineers developed a solution that allowed us to eliminate the need for a first-stage within our two-stage. The result has all of us at TriggerTech scratching our heads - we always felt that the unique combination of a short first stage, true Zero-Creep break, extremely short over travel and the ability to reset on the 2nd stage made our Two-Stage the perfect AR15 trigger. Now that we have our fingers on the only true Zero-Creep, Single-Stage AR trigger we are all in agreement – the new TriggerTech Single-Stage AR15 is our new go-to for most applications.

Technology

The same Zero-Creep TechnologyTM is used in our single-stage AR triggers which is comprised of a patented, free-floating roller that is captured between the sear and the ticker. This advancement makes it possible for us to eliminate creep from every one of our triggers.  Although the TriggerTech Single-Stage AR may look very close to it Two-Stage AR counterpart, developing the Single-Stage AR was no easy task. Many factors come into play that created challenges for our engineering team. The major challenge was that our disconnect technology was originally designed to require a first stage. Eliminating any movement in the lever before the break required a completely new disconnect profile. Another advantage of the two-stage design from a manufacturing perspective is that any stack-up lever ‘slop’ is masked by the first stage. We had to revisit the processes and tolerances for all three pivots in the lever-disconnect stack to ensure a perfectly crisp first stage.  This a trigger scan that shows the force and displacement of our Single-Stage AR Diamond Trigger vs. a Two-Stage AR Diamond Trigger both set at 1.5 lbs. The chart shows the single-stage’s immediate zero creep break.

Intended Use

3 Gun,  close quarter engagement,  competition,  harsh environments operations,  high speed shooting,  law enforcement,  long range hunting,  military,  precision shooting,  rugged hunting,  target shooting,  varmint hunting.

Trigger Control Details

    Trigger Lever Type: Flat Straight
    Trigger Action: Single-Stage
    Zero Creep: Yes
    TKR Technology: Yes
    CLKR Technology: Yes
    FLTWR Technology: Yes
    Creep: 0.000"
    Overtravel: <0.015"
    Reset: <0.030"
    Reset Feel: Tactile Mid Force
    Hammer Strike Force: Full
    Pin Size: Standard Mil-Spec Pin 0.154" (Triger Pins NOT Included)
    Satisfaction Guarantee: 30 Days
    Warranty: Product Lifetime
    Weapon Platform: AR-15

Material Details:

    Housing: 7075 Aluminum (Anodized)
    Key Components: 440C Stainless Steel
    PVD Black: Physical Vapor Deposition (PVD) is a hard and durable coating that is applied to external stainless components to give them a clean black color.

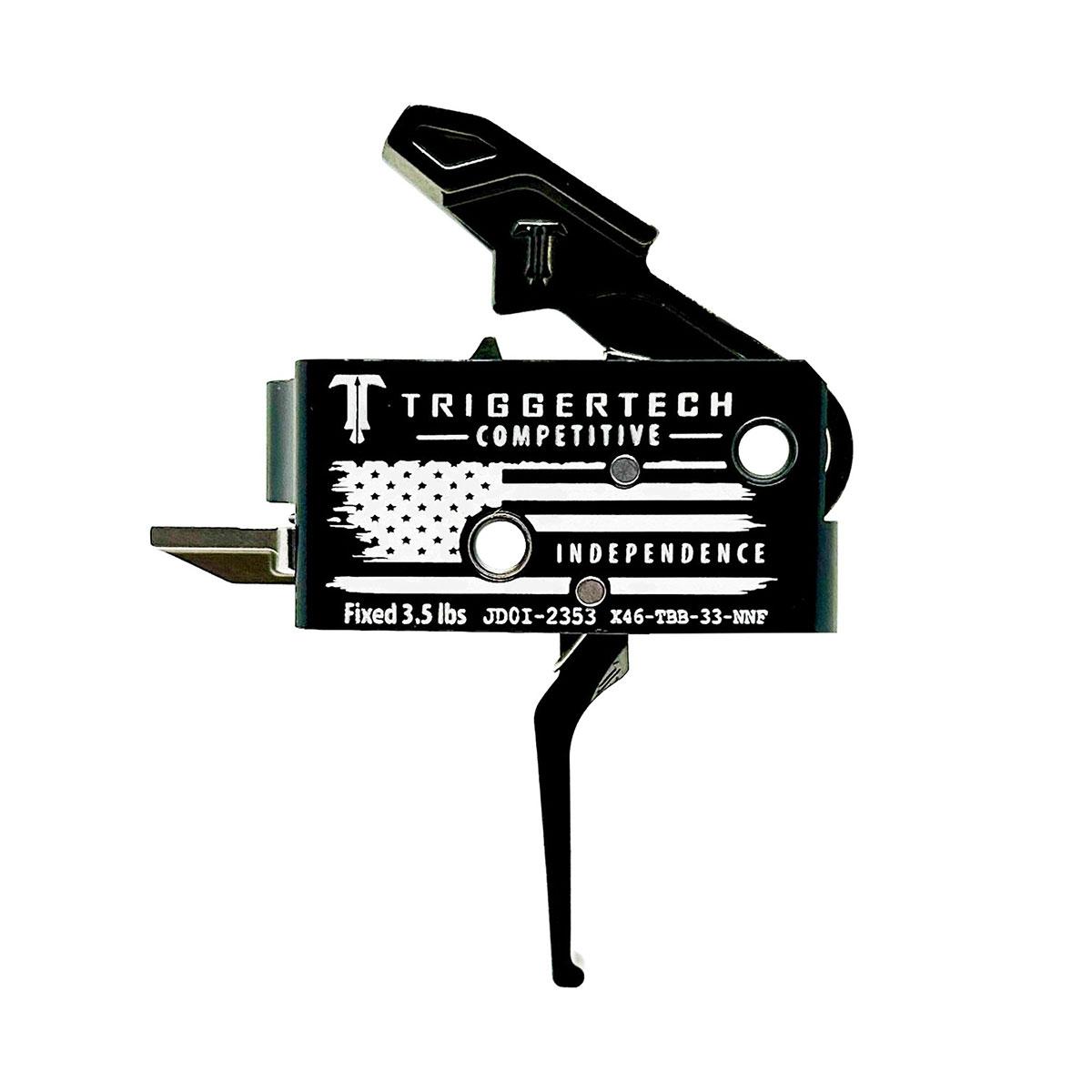

TriggerTech AR-15 Competitive Independence Edition, 3.5LB Single-Stage, Flat Black, Trigger

'-15':3 '3.5':7 '33':22 '885768003872':17 'ar':2 'black':13 'competit':4,15 'edit':6 'flat':12 'independ':5,16 'lb':8 'nnf':23 'singl':10 'single-stag':9 'stage':11 'tbb':21 'trigger':14 'triggertech':1,18 'x46':20 'x46-tbb':19

TriggerTech: Precision Triggers.

TriggerTech At Pew Deals

TriggerTech specializes in high-performance triggers designed for accuracy and reliability. Their products are used in various shooting disciplines.

Shop Triggertech offers at Pew Deals

TriggerTech AR-15 Duty, Single-Stage, Straight Flat, Trigger - $99.99 add to cart

Brand: TriggerTech

$99.99

In Stock

submitted 40 days ago

TriggerTech AR-15 Competitive Independence Edition, 3.5LB Single-Stage, Flat Black, Trigger

Brand: TriggerTech

$129.99

In Stock

submitted 103 days ago
